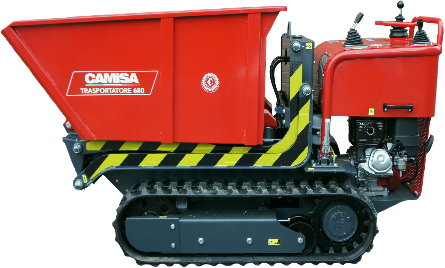

Manufactured in Italy the Camisa TP680 has been a successful mid-range high lift track barrow within the hire and construction trade for the last ten years

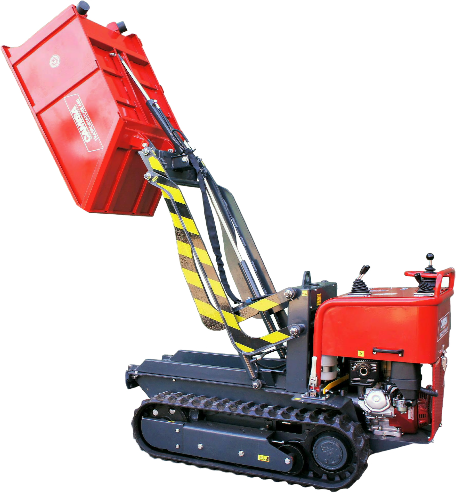

Lifting and tipping operation are all hydraulic


Maximum lift height 1700 mm

Maximum lift height when fully tilted 1500 mm

Maximum lift weight 800 Kg


Tip directly into a full size skip

or trailer, no need for ramps

Overall dimensions: 2200 x 800 x 1100 mm.

Un-laden Weight: 560 Kg

Gross Capacity:

1000 Kg when lowered and tipping

Land Speed: 0 to 5 Km/h

800 Kg when lifting and tipping

Engines:

Honda GX390

Yanmar L100

Lombardini 15T

Lombardini LDW702

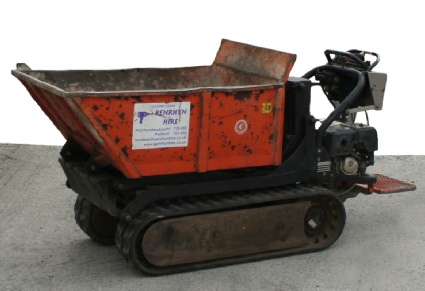

Ten years old and still in daily use in the hire trade

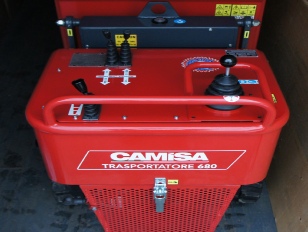

Hydrostatic transmission with joystick steering giving fingertip control for excellent safety and manoeuvrability

“Negative brakes”: when you release the joystick, the machine immediately stops moving and the brakes are engaged


Maximum slope climb without load and the bucket in the down position is 35o

David Salt handing over a new Camisa TP680 to Richard Aitkinhead (director) Penrhyn Tool Hire, North Wales, Richard placed the order after discussions at the 2014 Executive Hire Show

TP680 Spare parts drawings

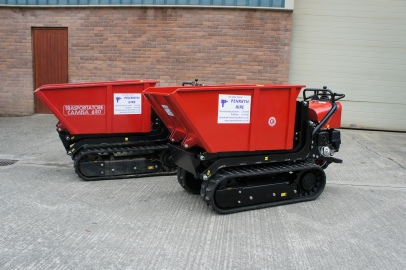

Penrhyn Tool Hire purchase their second TP680 Track Barrow (August 2014) so popular with their customers the decision was taken to take delivery of a second TP680 Track Barrow.

David is greeted by Massimo Camisa on his recent visit to the Camisa factory to inspect the up-dated TP580 tracked dumper, an order was placed and a TP580 will be available for inspection in the UK early August 2015.
